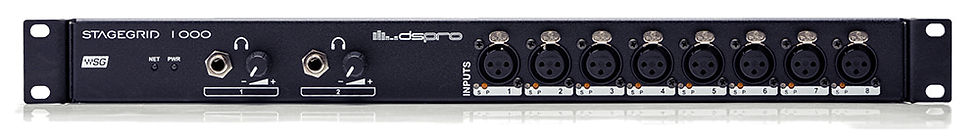

Waves DSPRO StageGrid 1000
The Waves DSPro StageGrid 1000 is a compact I/O device for eMotion LV1 live mixing systems. It features eight analog mic/line inputs and four balanced analog outputs, plus one channel of AES/EBU digital I/O. All channels are digitally controlled.

There are two headphone outs with independent volume controls. All components are carefully selected and tested to ensure continuous system stability and maximum dependability.

Built in a compact, robust 1U rack-mountable chassis, DSPro StageGrid 1000 provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology. The Waves DSPro StageGrid 1000 is now available for hire.

Waves DSPRO StageGrid 1000

$75.00Price

  • General

    • 8 Analog mic/line Inputs
    • 4 Analog line outputs
    • 1 Stereo AES / EBU Digital input
    • 1 Stereo AES / EBU Digital output
    • Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
    • Two headphone outputs
    • A SoundGrid Ethernet port



    Analog Inputs

    • Impedance: 2.86 kOhms
    • Gain range: -4 dB to 60 dB
    • Max input level: 28 dBu (-4 dB gain)
    • Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
    • THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
    • Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
    • Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
    • Phase Shift: <10° at 20 Khz



    Analog Outputs

    • Output impedance: 50 ohms
    • Max output Level (0dBFS): 24 dBu
    • Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
    • THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
    • Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz



    AES/EBU IN/OUT

    • Standard: AES3 (2009)
    • Sample rates: 44.1, 48, 88.2 and 96 kHz
    • Impedance: 110 ohms



    Headphones

    • Output Power: 150 mW per channel on 16 ohms
    • Dynamic range: 100 dB



    SoundGrid

    • Interface: Gigabit Ethernet
    • Connector: Neutrik EtherCON



    Power supply

    • Voltage: 110 or 240 VAC
    • Frequency: 50 Hz or 60 Hz Power: 60 W



    Environmental specifications

    • Operating temperature: 0°C to 40°C
    • Relative humidity: Up to 90% non-condensing



    Dimensions

    • Height: 44 mm / 1RU
    • Width: 430 mm / 19” rack
    • Depth: 300 mm (not including connectors)
    • Weight: 2.89 Kg
